I’ll never forget the call from a frantic client who had ordered 50,000 perfume bottles from a different supplier, only to discover that the pump collars he’d separately purchased from another manufacturer didn’t fit. The neck was 0.3mm too wide. The pumps wobbled. The crimp failed. He had 50,000 bottles and 50,000 pumps that wouldn’t work together.
That disaster cost him $40,000 and six weeks of delay. The cause? He didn’t specify the neck finish standard. He assumed “standard 50ml bottle” meant a standard neck. It doesn’t.
Neck sizes in perfume bottles follow specific international standards, and getting this right is the difference between a smooth production run and a catastrophic supply chain failure. Here’s the complete guide.
Why Neck Standardization Matters
The neck is the most functionally critical part of a perfume bottle. It must:
- Accept the pump or spray mechanism — exact inner diameter
- Hold the crimp collar — exact outer diameter and height
- Create a leak-proof seal — surface finish and tolerance
- Align with the cap — concentricity and thread compatibility
Get any of these wrong and you have a bottle that looks perfect but can’t function. The neck is where design meets engineering, and there’s zero room for error.
The Standard Neck Finish System
Perfume bottle necks follow the same standardization system used across the packaging industry. The key dimensions are:
| Dimension | What It Measures | Typical Tolerance |
|---|---|---|
| T (Thread diameter) | Outer thread crest diameter | ±0.05mm |
| E (Neck diameter) | Inner neck diameter (bore) | ±0.05mm |
| I | Inside diameter of neck opening | ±0.10mm |
| H | Neck height (from shoulder to top) | ±0.15mm |
| S | Distance from top to thread start | ±0.10mm |
| L | Thread lead (pitch) | ±0.05mm |
When you see a neck specification like “24/415”, the “24” is the nominal outer diameter in millimeters and “415” is the thread style code. Here’s the crucial part: the thread code determines the pump compatibility.
Common Perfume Bottle Neck Sizes
The Big Three
Most perfume bottles use one of three neck sizes:
| Neck Size | Outer Diameter | Typical Bottle Volume | Most Common Use |
|---|---|---|---|
| 18/415 | 18mm | 5-15ml | Travel size, samples |
| 20/415 | 20mm | 15-50ml | Standard eau de parfum |
| 24/415 | 24mm | 50-100ml | Large EDT, body sprays |
The 20/415 is the workhorse of the perfume industry. If you’re launching a standard 30ml or 50ml fragrance, this is almost certainly the neck size you need.
Less Common but Important Sizes
| Neck Size | Outer Diameter | Use Case |
|---|---|---|
| 13/415 | 13mm | Miniature samples, vials |
| 15/415 | 15mm | Small roller bottles, 5-10ml |
| 22/415 | 22mm | Medium bottles, transitional design |
| 28/415 | 28mm | Large body mists, room sprays |
| 32/415 | 32mm | Oversized bottles, diffusers |
Crimp vs Screw-On: The Two Attachment Systems
Neck sizes come in two fundamental configurations:
Crimp Neck (Crimp-On):
The pump is inserted into the neck and secured by crimping a metal collar around the neck’s outer surface. This is the traditional method used by most prestige perfumes.
- Requires a crimping machine ($200-800 for manual, $2,000-8,000 for semi-automatic)
- Creates a tamper-evident seal
- Very secure — won’t loosen during shipping
- The neck has no threads — just a smooth outer surface for crimping
Screw Neck (Screw-On):
The pump has a threaded plastic or metal collar that screws onto matching threads on the bottle neck.
- No crimping equipment needed
- Can be applied by hand
- Allows refilling (popular for refillable bottle systems)
- Thread engagement must be precise or the pump wobbles
How to Specify Your Neck Requirement
When ordering perfume bottles, you must specify:
- Neck size (e.g., 20/415)
- Attachment type (crimp or screw-on)
- Pump compatibility (brand/model if you have a specific pump)
- Neck finish (polished, satin)
- Collar material (aluminum for crimp, PP/ABS for screw)
Here’s a specification template I give to clients:
“`
Neck: 20/415
Type: Crimp (smooth outer, no threads)
Inner diameter: 20.0mm ±0.05mm
Outer diameter: 22.5mm ±0.05mm
Neck height: 15.5mm ±0.10mm
Surface: Polished (Ra 0.4)
Pump: [Brand/Model] or “standard 20/415 crimp pump”
Collar: Aluminum, silver
“`
The Pump Compatibility Nightmare
Here’s what most buyers don’t realize: not all “20/415” pumps fit all “20/415” bottles. Within the same nominal size, there are variations in:
- Crimp collar height — ranges from 4.5mm to 7.5mm
- Insertion depth — how far the pump dip tube goes into the bottle
- Outer collar diameter — must match the bottle neck outer diameter exactly
- Sealing method — rubber gasket vs PTFE vs silicone
The Solution: Send Your Pump Samples
If you already have pumps (or are sourcing them from a different supplier), send physical samples to your bottle manufacturer. We measure the pump, verify compatibility with our neck design, and adjust the mold if needed.
This costs nothing and prevents the $40,000 mistake I described at the start of this article.
Standardization Bodies and References
Perfume bottle neck sizes are governed by:
- ISO 9001 quality management 15757:2008 — Glass containers — Neck finishes
- ASTM International standards D2912 — Standard for glass container neck finishes
- FEVE European Container Glass Federation (European Container Glass Federation) — Industry guidelines
- TNO (Netherlands Organisation for Applied Scientific Research) — Thread specifications
If your buyer or distributor asks for compliance documentation, these are the references to cite. All reputable manufacturers should be able to confirm their neck finishes meet ISO 15757.

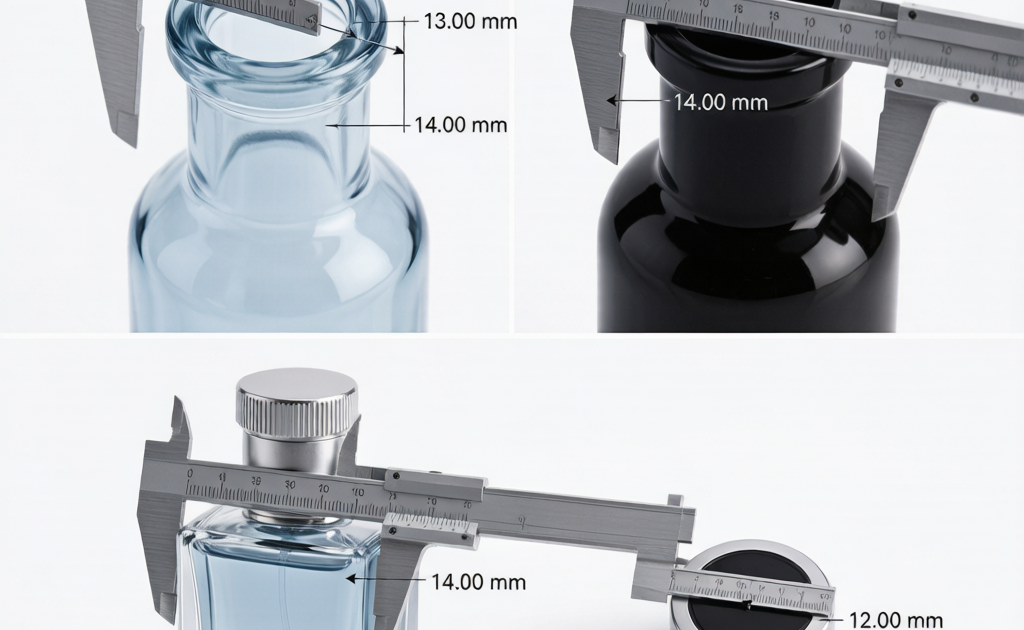

Dimensional Inspection: How to Verify
When you receive a sample or production batch, measure the neck:
Tools You Need
| Tool | Cost | Measures |
|---|---|---|
| Digital caliper (0.01mm) | $30-60 | T, E, H |
| Pin gauge set | $50-100 | I (inner diameter) |
| Thread gauge | $40-80 | Thread pitch/profile |
| Height gauge | $80-150 | S, L |
Measurement Procedure
- Clean the neck — remove any oil or glass dust
- Measure T (outer thread diameter) at three points, 120° apart
- Measure E (inner neck bore) with pin gauges
- Measure H (neck height) from shoulder to top
- Check concentricity — the neck must be centered on the bottle body
- Verify surface finish — no mold lines, no chips, no roughness
Any dimension outside tolerance means the entire batch needs inspection. Don’t accept “close enough” on neck dimensions.
Custom Neck Designs
For brands wanting something unique, custom neck designs are possible but carry significant considerations:
| Custom Feature | Added Cost | Risk Level | MOQ |
|---|---|---|---|
| Custom thread pitch | $0.05-0.10/bottle | Medium — pump sourcing limited | 10,000 |
| Non-standard diameter | $0.08-0.15/bottle | High — requires custom pump | 10,000 |
| Integrated splash guard | $0.10-0.20/bottle | Low — standard pumps compatible | 5,000 |
| Threadless crimp + visual ring | $0.05-0.08/bottle | Low — aesthetic only | 3,000 |
Custom necks require a custom mold and custom pump tooling. For most brands, I recommend sticking with standard neck sizes and expressing uniqueness through bottle body design, decoration, and cap selection instead.
Frequently Asked Questions
What is the standard neck size for perfume bottles?
The most common perfume bottle neck size is 20/415 (20mm outer diameter, 415 thread style), used for 15-50ml bottles. For larger 50-100ml bottles, 24/415 is standard. For travel-size 5-15ml bottles, 18/415 is typical. These sizes follow ISO 15757:2008 standards.
How do I know if a pump will fit my perfume bottle?
Pump compatibility depends on neck size, crimp collar height, insertion depth, and sealing method. Always send physical pump samples to your bottle manufacturer for measurement verification before production. Never assume that “standard 20/415” pumps fit all 20/415 bottles — there are manufacturing variations within the same nominal size.
What is the difference between crimp and screw-on perfume bottle necks?
Crimp necks have a smooth outer surface where a metal collar is crimped around the pump, creating a tamper-evident seal (requires crimping machine). Screw-on necks have molded threads that the pump collar screws onto (no equipment needed, refillable). Crimp is more secure; screw-on is more convenient.
Are perfume bottle neck sizes standardized?
Yes, perfume bottle neck sizes follow ISO 15757:2008 and ASTM D2912 standards. The most common sizes are 18/415, 20/415, and 24/415. However, within these standards, manufacturers may have slight variations in collar height and insertion depth, so pump compatibility should always be verified with physical samples.
Can I use a custom neck size for my perfume bottle?
Yes, custom neck sizes are possible but require higher MOQs (typically 10,000+ pieces), custom molds, and custom pump tooling. Custom necks add $0.05-0.15 per bottle and limit your pump sourcing options. For most brands, standard neck sizes with unique body design and decoration offer better value.
—
